Wire Mesh Decking

Wire mesh shelves to fit over beams

Request a Quote

STAK-DECK Wire Mesh Decking

STAK DECK, wire mesh decking is a great alternative to traditional timber or chipboard decking as it maintains the integrity of fire detection & suppression systems. Powder Coated in Grey RAL 7037 or BZP galvanised.

Lightweight & Strong

No Fixings Required

Insurance Compliant

1000kg Or 1500kg Loading

With or Without Dividers

Buy Online

Mesh decks are available to buy online in pallet quantities.

Buy Online

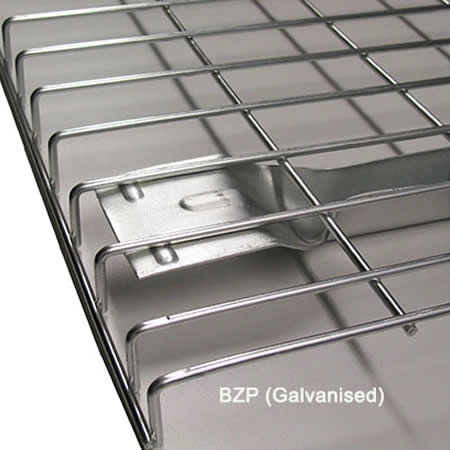

BZP (Galvanised) BZP (Galvanised)

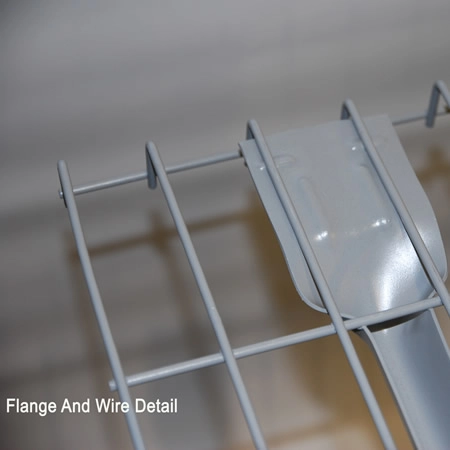

Flange and Wire Detail Flange and Wire Detail
Divider in Position Divider in Position

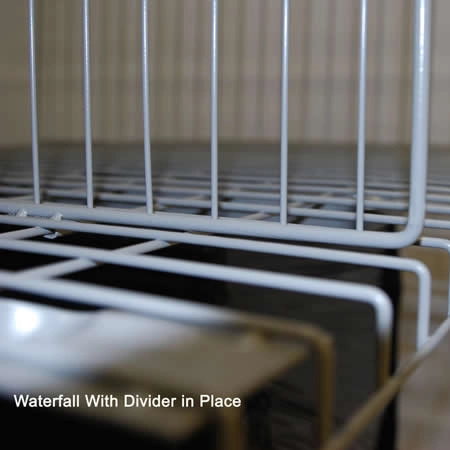

Waterfall with Divider in Place Waterfall with Divider in Place

Why choose Wire Mesh Decking?

For users:

  • Allows clear view of pallets through base, making easier & quicker for
  • Fork Lift operations
  • Caters for non-standard Pallet sizes on racking
  • Increases lighting & allows for air movement and cooling into warehouse area
  • Converts pallet racking into shelving for smaller items, without a loss in loading capacity
  • Can be used on Box or Stepped beams
  • Compatible with most racking manufacturers
  • Easy to install – drops into place, no fastening required
  • Strong, durable & maintenance free

For compliance & insurance:

  • Allowing smoke & heat to rise activating fire detection systems
  • Can reduce the number of levels requiring sprinklers
  • Allows water from sprinklers to penetrate the storage systems helping to extinguish fires
  • Prevent products from falling through your racking system and causing damage or injury
  • Ideal for food and pharmaceutical environments
  • Completely sterile – dust free and no home for bugs, in a Mesh Deck
  • Fully tested and weight specification compliant
  • In many cases it can reduce your insurance premiums

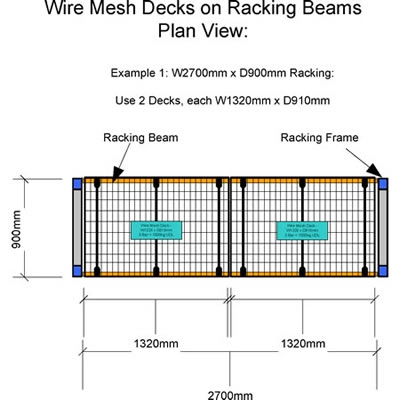

Wire Mesh Decking - wire decks 1
Wire Mesh Decks on Racking Beams – Example 1

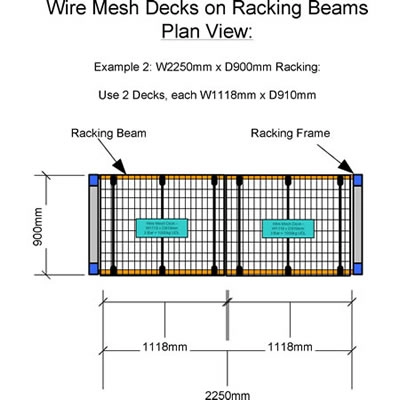

Wire Mesh Decking - wire decks 2
Wire Mesh Decks on Racking Beams – Example 2

A] For indoor, dry use = Standard Powder Coated RAL 7037
Sizes available – Normally from Stock – allow 7 days, but Express is possible, please ask.

  Width x Depth Rated UDL: No. Support Bars:
For 900mm Deep Racking W1040mm x D910mm 1000KG 3
For 900mm Deep Racking W1118mm x D910mm 1000KG 3
For 900mm Deep Racking W1320mm x D910mm 1000KG 3
For 900mm Deep Racking W1320mm x D910mm HD 1500KG 5
For 1100mm Deep Racking W1040mm x D1110mm 1000KG 3
For 1100mm Deep Racking W1118mm x D1110mm 1000KG 3
For 1100mm Deep Racking W1320mm x D1110mm 1000KG 4
For 1100mm Deep Racking W1320mm x D1110mm HD 1500KG 5
Width x Depth
For 900mm Deep Racking W1040mm x D910mm
For 900mm Deep Racking W1118mm x D910mm
For 900mm Deep Racking W1320mm x D910mm
For 900mm Deep Racking W1320mm x D910mm
For 1100mm Deep Racking W1040mm x D1110mm
For 1100mm Deep Racking W1118mm x D1110mm
For 1100mm Deep Racking W1320mm x D1110mm
For 1100mm Deep Racking W1320mm x D1110mm
Rated UDL:
For 900mm Deep Racking 1000KG
For 900mm Deep Racking 1000KG
For 900mm Deep Racking 1000KG
For 900mm Deep Racking HD 1500KG
For 1100mm Deep Racking 1000KG
For 1100mm Deep Racking 1000KG
For 1100mm Deep Racking 1000KG
For 1100mm Deep Racking HD 1500KG
No. Support Bars:
For 900mm Deep Racking 3
For 900mm Deep Racking 3
For 900mm Deep Racking 3
For 900mm Deep Racking 5
For 1100mm Deep Racking 3
For 1100mm Deep Racking 3
For 1100mm Deep Racking 4
For 1100mm Deep Racking 5

Standard Powder Coated RAL 7037 Mesh Accessories-

Snap in divider

W900mm x H300mm

Snap in divider

W1100mm x 300mm

B] Alternative Option choose Standard BZP Bright Zinc Plate ( Low Level Galv)
Sizes available – Normally from Stock – allow 7 days, but Express is possible, please ask.

C] Hot Dip Galv Price on Application

  Width x Depth Rated UDL: No. Support Bars:
For 900mm Deep Racking W1320mm x D910mm 1000KG 3
For 1100mm Deep Racking W1080mm x D1110mm 1000KG 3
For 1100mm Deep Racking W1320mm x D1110mm 1000KG 4
Width x Depth
For 900mm Deep Racking W1320mm x D910mm
For 1100mm Deep Racking W1080mm x D1110mm
For 1100mm Deep Racking W1320mm x D1110mm
Rated UDL:
For 900mm Deep Racking 1000KG
For 1100mm Deep Racking 1000KG
For 1100mm Deep Racking 1000KG
No. Support Bars:
For 900mm Deep Racking 3
For 1100mm Deep Racking 3
For 1100mm Deep Racking 4

Size Guide

Download Size Guide: – Match Decks to Pallet Racking Bays

Download Size Guide

Buy Wire Mesh Decking

Prices are on application, depending on quantity and delivery location.

Request a Quote
D910 X W 1110 mm D910 X W 1110 mm
D910 X W1320 mm D910 X W1320 mm
D1110 X W1320 mm D1110 X W1320 mm
