Create secure working stations in any area.
High quality and easy to construct, our system provides future proof partition systems that are attractive and professional.
Enquire today for a fully bespoke, tailored service that will fulfil all of your requirements.
A range of Glass, Steel and a mixture of materials make our system extremely versatile to your environment.
High Quality
Versatile
Modular
All panels are finished with 70 microns of lead free powder coating on a 40 x 40 x 2.5mm steel angle framework.
| All Panel Colours Available | |||||
|---|---|---|---|---|---|
|
Sandstone
BS.08.B.17 |
Grey
BS.0.A.05 |
Dark Grey
RAL7037 |
Blue
RAL5010 |
White
RAL9010 |
Traffic White
RAL 9016 |
| Finishes Available | |||
|---|---|---|---|
| Metallic Finish | Textured Finish |
Galvanised
|
ESD Finish
|
| STAK-BAS | STAK-LAN | STAK-TAN | |
|---|---|---|---|
| Wall | Single Skin | Double Skin | Double Skin |
| Application | Warehouse | Factory, Laboratories | Clean Room |
| Style | Economy | Standard | Premium |
| STAK-BAS | |
|---|---|
| Wall | Single Skin |
| Application | Warehouse |
| Style | Economy |
| STAK-LAN | |
|---|---|
| Wall | Double Skin |
| Application | Factory, Laboratories |
| Style | Standard |
| STAK-TAN | |
|---|---|
| Wall | Double Skin |
| Application | Clean Room |
| Style | Premium |

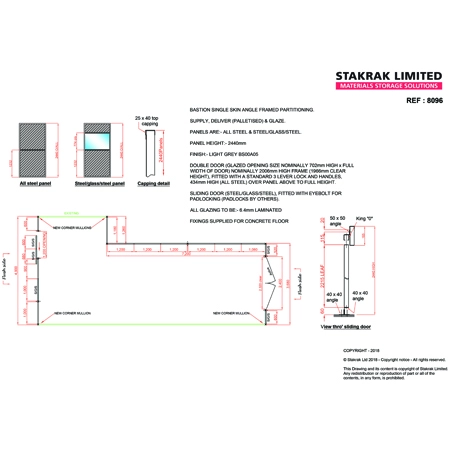

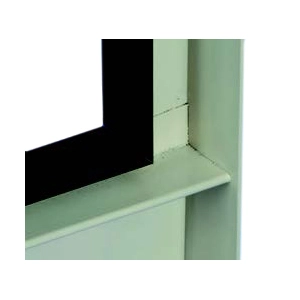

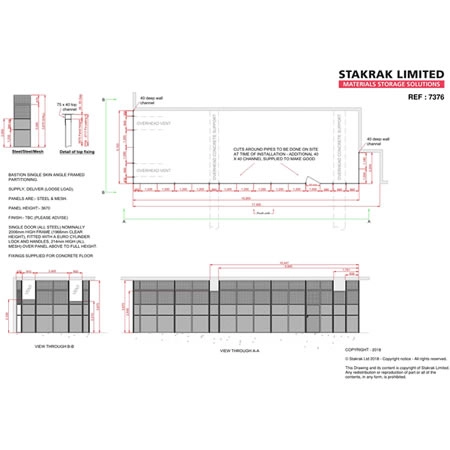

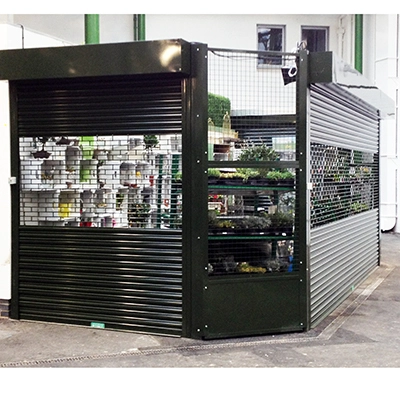

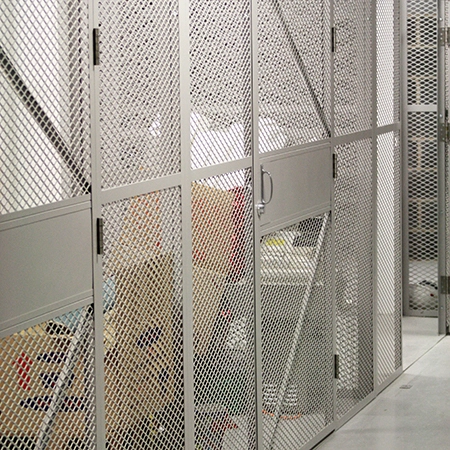

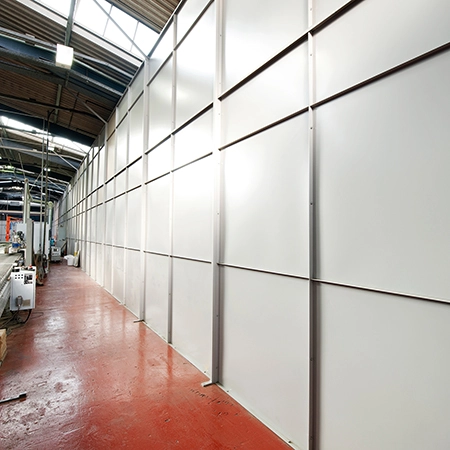

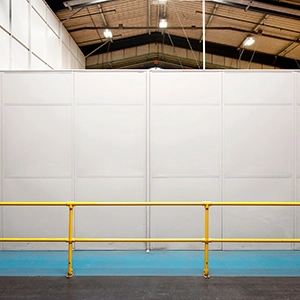

STAK-BAS
Our STAK-BAS system provides a cost effective solution to create secure, strong and stable enclosures of a single skin.
Economic and heavy duty, its robust angle frame makes it ideal for preventing intrusion and interference.
Standard Heights (mm): 2440, 2745, 3000
Any height can be fabricated dependant on your requirements.
Standard Widths (mm): 300, 400, 500, 600, 700, 800, 900, 1000, 1200
Panel Options: 50 x 50 Mesh, 25 x 25 Mesh, Ex-Mesh*, Glazed, Solid Steel

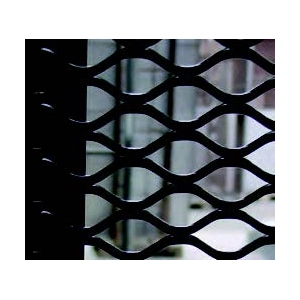

*Ex Mesh is expanded, diagonal mesh

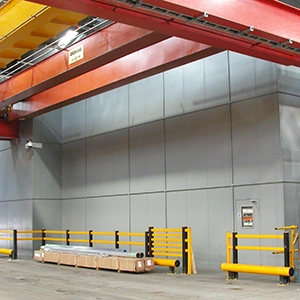

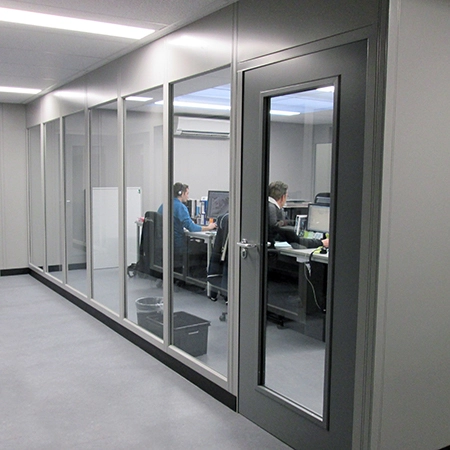

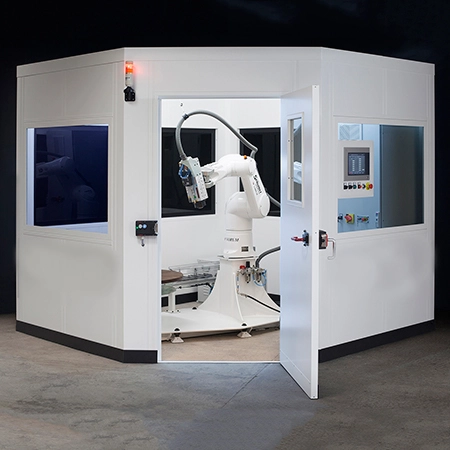

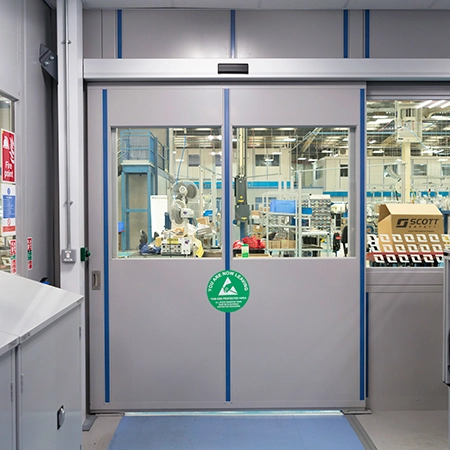

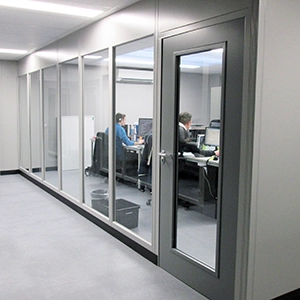

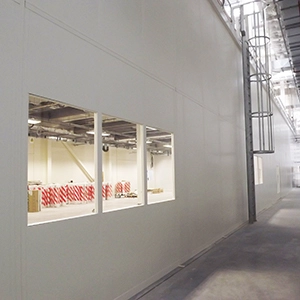

STAK-LAN
Our STAK-LAN system provides a high quality, attractive double skin solution to create secure working environments in factories, offices and laboratories.
Noise reduction and fire rated versions available.

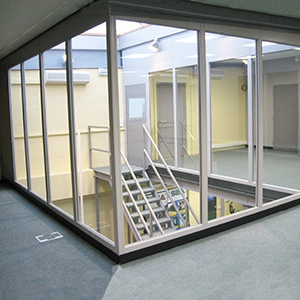

A wide range of glass vision panels provides excellent visibility for offices within warehouses.
Any height can be fabricated dependant on your requirements.
Standard Heights (mm)
2440, 2743, 3000
Standard Widths (mm)
300, 400, 500, 600, 700, 800, 900, 1000, 1,200
STAK-LAN
STAK-LAN PANEL OPTIONS:

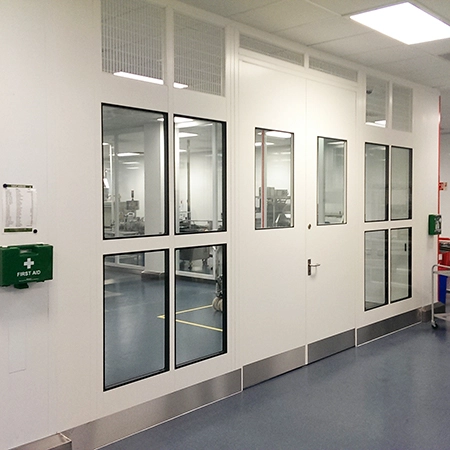

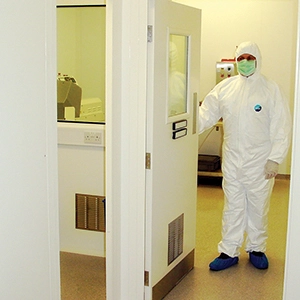

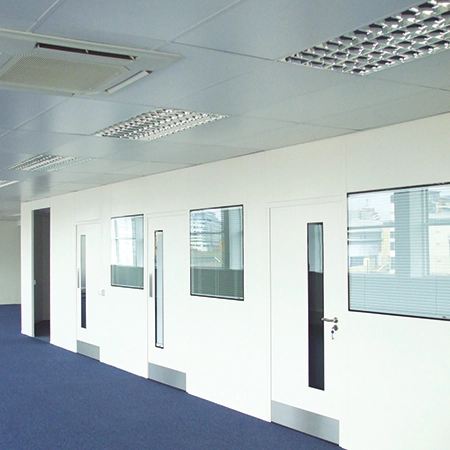

STAK-TAN
Our STAK-TAN system is a high quality, double skinned solution for cleanroom applications. With correct air handling, filters and accessories, STAK-TAN meets ISO14644-1 Class 5 Environment.
All components are stainless steel, with magnetic blinds and silicone seal joins to prevent air access available.
TGIC and lead-free polyester powder coating in RAL9010 white as standard.
Anti-static, fire rated and anti-microbial coatings also available.
Any height can be fabricated dependant on your requirements.
Standard Heights (mm)
2440, 2745, 3050
Standard Widths (mm)
300, 500, 1000
